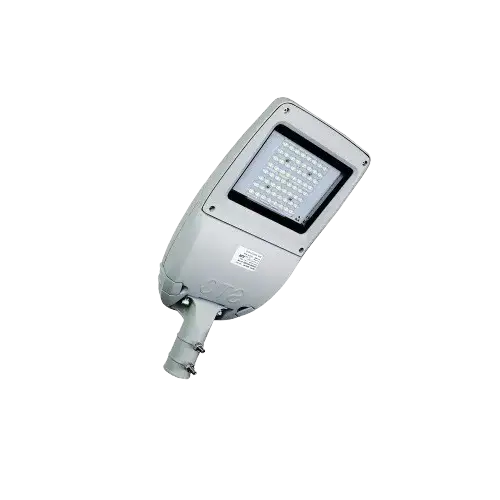

SHAHAB STREET LIGHT – S SERIES

Warranty:

Street Light

Brief description:

The Shahab S street light, featuring a modern design and advanced technology, is one of the best solutions for illuminating wide and high-traffic roads.

Features:

Excellent Luminous Efficacy (145 Lm/W) and lumen maintenance throughout the product lifespan.
90-degree vertical rotation capability for the mounting bracket and ±15 degrees in the horizontal plane.
SMD LED light source with LM-80 certification.
High Ingress Protection (IP66) against moisture and dust.
Impact Protection Rating (IK08).
Glass, impact-resistant light-transmitting cover/diffuser.
High thermal conductivity die-cast aluminum body.
Zero maintenance and repair costs over the luminaire’s lifetime.
Wide input voltage range (100 to 277 VAC).
High Power Factor (PF > 0.97).
High Color Rendering Index (CRI > 70).
Current Total Harmonic Distortion (THD) of less than 10%.
Equipped with an internal pressure-regulating mechanism (Breathing Valve/Vent).
Uniform, glare-free, and flicker-free lighting.
Operating temperature range from -30 to +50 degrees Celsius.
Equipped with an independent Surge Protection Device (SPD 10KV), in addition to internal driver protection.
Absence of ultraviolet (UV) and infrared (IR) radiation.

The Shahab S street light, featuring a modern design and advanced technology, is one of the best solutions for illuminating wide and high-traffic roads.

Color rendering index (Ra) 70
Color temperature (K) 3000 , 4000 , 5000 , 6500
Light source SMD LED
Lumen maintenance code 9
Luminous efficacy (Lm/W) 145
Light distribution angle (O)

Input voltage range (VAC) 100-277
Rated input voltage (VAC) 230
frequency (Hz) 50-60
LED Module Voltage 20-40W=48 ، 50-100W=36
Power (W) 20 , 25 , 30 , 35 , 40 , 50 , 60 , 70 , 80 , 90 , 100
Power factor ≥0.98
Harmonic (%) ≤10%
Electric shock protection class I

Total weight (Kg) 3.3
Overall dimensions (mm) L498 x W228 x H104
Body cover Electrostatic powder coated
Body material Die-cast Aluminum (ADC12) body material
Diffuser Material Tempered glass
Ingress Protection Rating (IP) 66
Pipe Holder Diameter (mm) Ø40- Ø53
Impact protection rating (IK) 08
RAL color (RAL) 9006
Pipe Holder angles 90-degree rotation of the mounting bracket and -15 to +15 angle adjustability in the horizontal plane

Additional information

Application	Highways, freeways, streets, alleys and passages
Permissible operating temperature (C°)	-30~+50
Warranty (years)	5
Maximum permissible humidity (%)	95
Nominal Lifespan (L70B10)	100000
