OPAL FLOOD LIGHT – ECO SERIES

Warranty:

Flood Light

Brief description:

The Opal ECO flood light is a cost-effective and energy-efficient solution, designed to replace conventional lighting fixtures with modern LED technology.

Features:

High light efficiency: Provides stable performance and reliable lighting by maintaining the luminous flux throughout the product’s life.
Efficient power supply: High-efficiency driver and ability to withstand various voltage conditions (180~265 V)
Energy saving: Significantly reduces energy consumption compared to old lamps.
High resistance: IP65 protection level that makes the projector resistant to moisture and dust.
Long life: Optimal design and use of high-quality materials increase the useful life of this product.
Variety of light colors: Available in sunny, moonlight, green, red and blue colors with high color rendering index.
Environmentally friendly: No emission of hazardous radiation and no environmental pollution.
Equipped with pressure regulating valve: In powers of 100, 150, 200 and 300 watts.

The Opal ECO flood light is a cost-effective and energy-efficient solution, designed to replace conventional lighting fixtures with modern LED technology.

Color rendering index (Ra) 80
Color temperature (K) R، G، B، A، 3000، 6500
Light source SMD LED
Lumen maintenance code 9
Luminous efficacy (Lm/W) 90

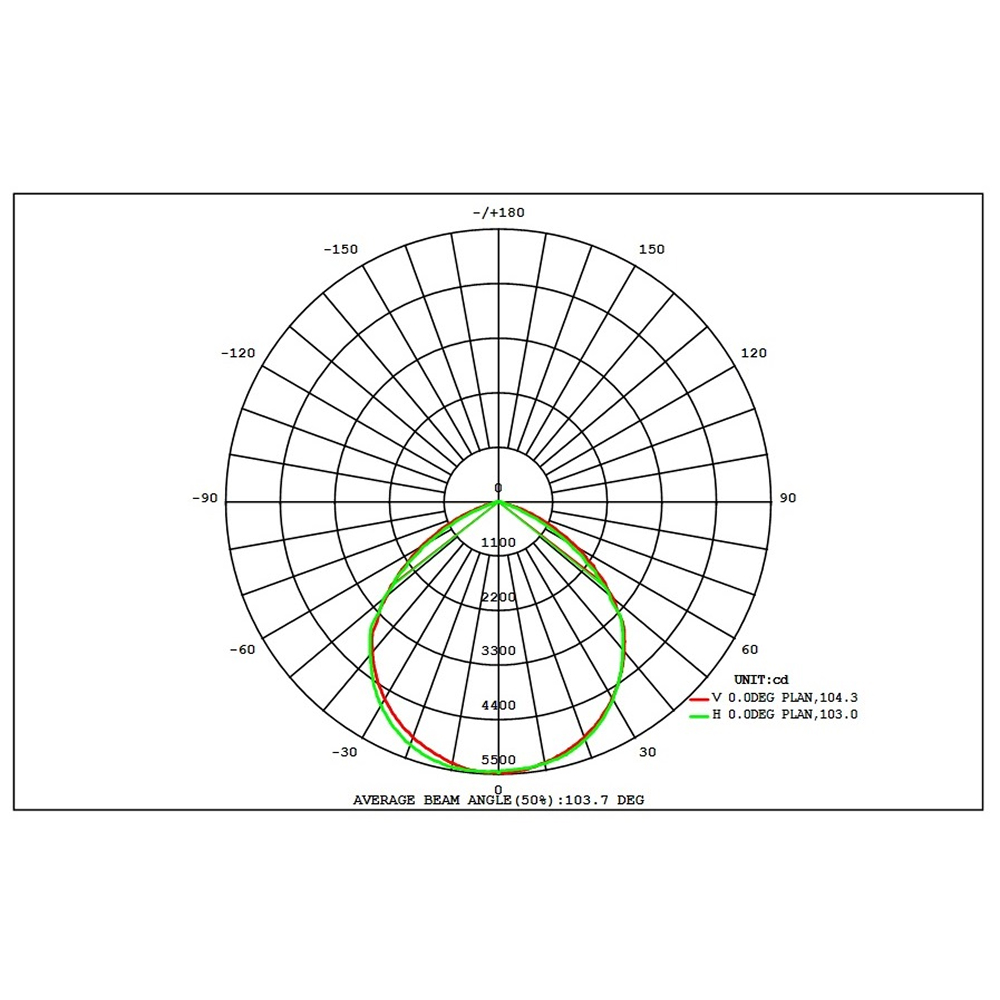

Light distribution angle (O)

Input voltage range (VAC) 180-265
Rated input voltage (VAC) 230
frequency (Hz) 50-60
LED Module Voltage
Power (W) 50 , 100 , 150 , 200 , 300
Power factor ≥0.95
Harmonic (%) ≤20%
Electric shock protection class I

Total weight (Kg) 50W=1.4
100W=2
150W=3.2
200W=5
300W=7.2
Overall dimensions (mm) 50W=L228 x W220 x H49
100W=L282 x W270 x H68
150W=L335 x W365 x H86
200W=L450 x W410 x H100
Body cover Electrostatic powder coated
Body material Aluminum die-cast (ADC12)
Diffuser Material Tempered glass
Ingress Protection Rating (IP) 65
Pipe Holder Diameter (mm)
Impact protection rating (IK) 08
RAL color (RAL) 9005
Pipe Holder angles

Additional information

Application	Forest and recreational parks, billboards and advertising signs, building facades, industrial halls, sports facilities, parking lots and warehouses, commercial and shopping complexes
Permissible operating temperature (C°)	-20~+50
Warranty (years)	1
Maximum permissible humidity (%)	95
Nominal Lifespan (L70B10)	30000
